THE HEX AND STAR HEADS

The next generation of Tapcon Anchors are engineered to be installed fast and
trusted for a lifetime. They’re the original and still the best when it comes to concrete anchoring.

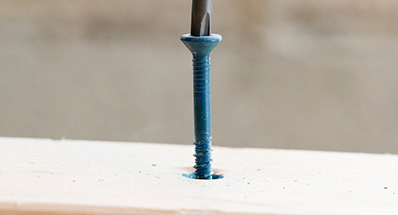

STAR HEAD

Engineered for a more stable drive with no bit slip
Climaseal coating for corrosion resistance + long-lasting quality
Marked so you can tell it’s a genuine Tapcon

HEX HEAD

NEW Underhead Ribs to increase productivity and installation success
Resistant to anchor spinouts and head snaps
Climaseal coating for corrosion resistance + long-lasting quality

Ask About This Product...

WHERE TO BUY

SELECT YOUR HOME CENTER

Product Name	Part Number
Concrete Screw Anchors Hex Head 3/16"x1-1/4", 8 pk	24100
Concrete Screw Anchors Hex Head 1/4"x3-1/4", 8 pk	24101		-
Concrete Screw Anchors Hex Head 3/16"x1-3/4', 8 pk	24105
Concrete Screw Anchors Hex Head 3/16"x2-3/4", 8 pk	24110
Concrete Screw Anchors Hex Head 1/4"x1-1/4", 8 pk	24115
Concrete Screw Anchors Hex Head 1/4"x1-3/4", 8 pk	24120
Concrete Screw Anchors Hex Head 1/4"x2-1/4", 8 pk	24125
Concrete Screw Anchors Hex Head 1/4"x2-3/4", 8 pk	24130
Concrete Screw Anchors Hex Head 3/16"x1-1/4", 25 pk	24200
Concrete Screw Anchors Hex Head 3/16"x1-3/4', 25 pk	24205
Concrete Screw Anchors Hex Head 3/16"x2-3/4", 25 pk	24210
Concrete Screw Anchors Hex Head 1/4"x1-1/4", 25 pk	24215
Concrete Screw Anchors Hex Head 1/4"x1-3/4", 25 pk	24220
Concrete Screw Anchors Hex Head 1/4"x2-1/4", 25 pk	24225
Concrete Screw Anchors Hex Head 1/4"x2-3/4", 25 pk	24230
Concrete Screw Anchors Hex Head 1/4"x3-3/4", 8 pk	24240		-
Concrete Screw Anchors Hex Head 1/4'x4', 8 pk	24245
Concrete Screw Anchors Hex Head 3/16"x1-1/4", 75 pk	24300
Concrete Screw Anchors Hex Head 1/4"x3-1/4", 75 pk	24301
Concrete Screw Anchors Hex Head 3/16"x1-3/4', 75 pk	24305
Concrete Screw Anchors Hex Head 3/16"x2-3/4", 75 pk	24310
Concrete Screw Anchors Hex Head 1/4"x1-1/4", 75 pk	24315
Concrete Screw Anchors Hex Head 1/4"x1-3/4", 75 pk	24320
Concrete Screw Anchors Hex Head 1/4"x2-1/4", 75 pk	24325
Concrete Screw Anchors Hex Head 1/4"x2-3/4", 75 pk	24330
Concrete Screw Anchors Hex Head 1/4"x3-3/4", 25 pk	24335
Concrete Screw Anchors Hex Head 1/4"x3-3/4", 75 pk	24340		-
Concrete Screw Anchors Hex Head 1/4"x4", 25 pk	24345
Concrete Screw Anchors Hex Head 1/4'x5', 25 pk	24400
Concrete Screw Anchors Hex Head 1/4"x3-3/4", 150 pk	24501
Concrete Screw Anchors Hex Head 1/4"x1-1/4", 225 pk	24515
Concrete Screw Anchors Hex Head 1/4"x1-3/4", 225 pk	24520
Concrete Screw Anchors Hex Head 1/4"x2-1/4", 225 pk	24525
Concrete Screw Anchors Hex Head 1/4"x2-3/4", 150 pk	24530
Concrete Screw Anchors Star Head 3/16"x3-1/4", 8 pk	28107		-
Concrete Screw Anchors Star Head 3/16"x1-1/4", 8 pk	28150
Concrete Screw Anchors Star Head 3/16"x1-3/4", 8 pk	28155
Concrete Screw Anchors Star Head 3/16"x2-1/4", 8 pk	28160
Concrete Screw Anchors Star Head 3/16"x2-3/4", 8 pk	28165
Concrete Screw Anchors Star Head 1/4"x1-3/4", 8 pk	28175
Concrete Screw Anchors Star Head 1/4"x2-1/4", 8 pk	28180
Concrete Screw Anchors Star Head 1/4"x2-3/4", 8 pk	28185
Concrete Screw Anchors Star Head 1/4"x4", 8 pk	28204		-
Concrete Screw Anchors Star Head 3/16"x1-1/4", 25 pk	28250
Concrete Screw Anchors Star Head 3/16"x1-3/4", 25 pk	28255
Concrete Screw Anchors Star Head 3/16"x2-1/4", 25 pk	28260
Concrete Screw Anchors Star Head 3/16"x2-3/4", 25 pk	28265
Concrete Screw Anchors Star Head 1/4"x1-3/4", 25 pk	28275
Concrete Screw Anchors Star Head 1/4"x2-1/4", 25 pk	28280
Concrete Screw Anchors Star Head 1/4"x2-3/4", 25 pk	28285
Concrete Screw Anchors Star Head 1/4"x3-3/4", 8 pk	28295		-
Concrete Screw Anchors Star Head 1/4"x4", 50 pk	28304		-
Concrete Screw Anchors Star Head 3/16"x1-1/4", 75 pk	28350
Concrete Screw Anchors Star Head 3/16"x1-3/4", 75 pk	28355
Concrete Screw Anchors Star Head 3/16"x2-1/4", 75 pk	28360
Concrete Screw Anchors Star Head 3/16"x2-3/4", 75 pk	28365
Concrete Screw Anchors Star Head 1/4"x1-3/4", 75 pk	28375
Concrete Screw Anchors Star Head 1/4"x2-1/4", 75 pk	28380
Concrete Screw Anchors Star Head 1/4"x2-3/4", 75 pk	28385
Concrete Screw Anchors Star Head 1/4"x3-3/4", 25 pk	28390
Concrete Screw Anchors Star Head 1/4"x3-3/4", 75 pk	28395
Concrete Screw Anchors Star Head 1/4"x4", 25 pk	28397	-	-
Concrete Screw Anchors Star Head 3/16"x1-1/4", 225 pk	28550
Concrete Screw Anchors Star Head 3/16"x1-3/4", 225 pk	28555
Concrete Screw Anchors Star Head 3/16"x2-1/4", 225 pk	28560
Concrete Screw Anchors Star Head 3/16"x2-3/4", 225 pk	28565
Concrete Screw Anchors Star Head 1/4"x1-3/4", 225 pk	28575
Concrete Screw Anchors Star Head 1/4"x2-3/4", 150 pk	28585

Product Information
Related Products
FAQ'S

Product Information

Application Videos

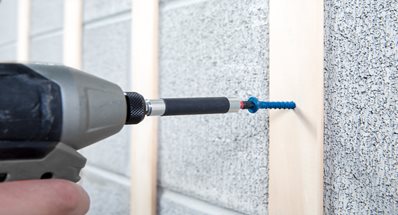

STAR HEAD APPLICATION VIDEO

HEX HEAD APPLICATION VIDEO

FAMILY	U.S. Size (Dia. x Length)	Large Bucket Part No. \| Qty.	Bucket Part No. \| Qty.	Lg. Clam Part No. \| Qty.	Med. Pack Part No. \| Qty.	Small Pack Part No. \| Qty.
STAR HEAD
Blue Climaseal®	3/16" x 1-1/4"	28731 \| 450	28550 \| 225	28350 \| 75	28250 \| 25	28150 \| 8
Blue Climaseal®	3/16" x 1-3/4"	28655 \| 450	28555 \| 225	28355 \| 75	28255 \| 25	28155 \| 8
Blue Climaseal®	3/16" x 2-1/4"		28560 \| 225	28360 \| 75	28260 \| 25	28160 \| 8
Blue Climaseal®	3/16" x 2-3/4"		28565 \| 225	28365 \| 75	28265 \| 25	28165 \| 8
Blue Climaseal®	3/16" x 3-1/4"		28507 \| 150	28307 \| 75		28107 \| 8
Blue Climaseal®	1/4" x 1-3/4"		28575 \| 225	28375 \| 75	28275 \| 25	28175 \| 8
Blue Climaseal®	1/4" x 2-1/4"		28580 \| 225	28380 \| 75	28280 \| 25	28180 \| 8
Blue Climaseal®	1/4" x 2-3/4"		28585 \| 150	28385 \| 75	28285 \| 25	28185 \| 8
Blue Climaseal®	1/4" x 3-3/4"			28395 \| 75	28390 \| 25	28295 \| 8
Blue Climaseal®	1/4" x 4"			28304 \| 75	28397 \| 25	28204 \| 8
HEX HEAD
Blue Climaseal®	3/16" x 1-1/4"		24500 \| 225	24300 \| 75	24200 \| 25	24100 \| 8
Blue Climaseal®	3/16" x 1-3/4"			24305 \| 75	24205 \| 25	24105 \| 8
Blue Climaseal®	3/16" x 2-3/4"			24310 \| 75	24210 \| 25	24110 \| 8
Blue Climaseal®	1/4" x 1-1/4"	24711 \| 450	24515 \| 225	24315 \| 75	24215 \| 25	24115 \| 8
Blue Climaseal®	1/4" x 1-3/4"		24520 \| 225	24320 \| 75	24220 \| 25	24120 \| 8
Blue Climaseal®	1/4" x 2-1/4"		24525 \| 225	24325 \| 75	24225 \| 25	24125 \| 8
Blue Climaseal®	1/4" x 2-3/4"		24530 \| 150	24330 \| 75	24230 \| 25	24130 \| 8
Blue Climaseal®	1/4" x 3-1/4"		24501 \| 150	24301 \| 75		24101 \| 8
Blue Climaseal®	1/4" x 3-3/4"			24340 \| 75	24335 \| 25	24240 \| 8
Blue Climaseal®	1/4" x 4"				24345 \| 25	24245 \| 8
Blue Climaseal®	1/4" x 5"				24400 \| 25

GENUINE TAPCON DOCUMENTATION

PDF of How to Install

Technical Data PDF

ENGINEERING

ESR-1671 Code Approval

ESR-2202 Code Approval

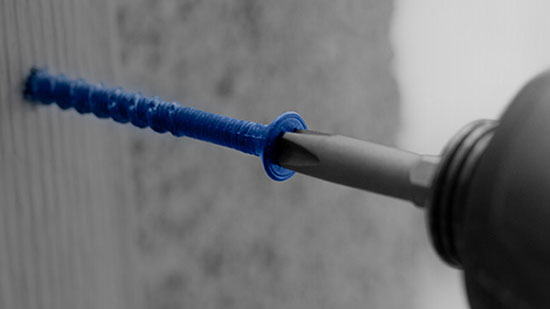

HOW TO INSTALL TAPCON ANCHORS

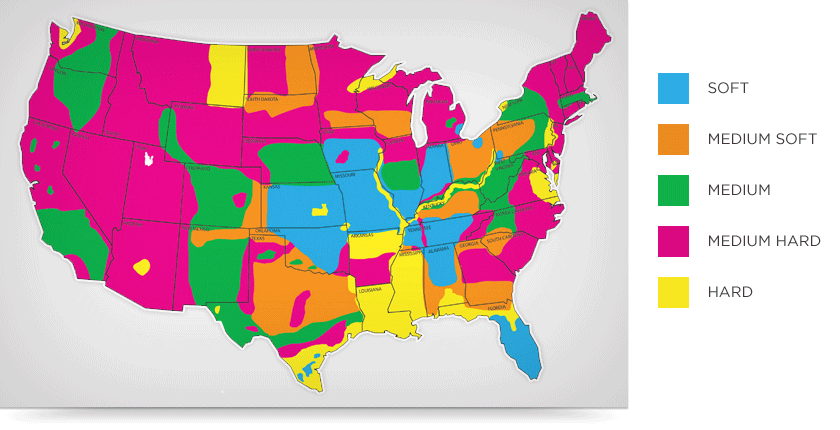

Aggregate Classification Map of The United States

FAQ’s

Where are Tapcon anchors manufactured?

All genuine Tapcon anchors are engineered and manufactured in the United States.

What does "Tapcon" mean?

The Tapcon name is derived from its ability to "tap" threads into "con"crete.

What are Tapcon screw anchors?

Tapcon anchors are masonry screws designed with Advanced Threadform Technology^™, which cuts threads into all masonry materials including concrete, block and brick.

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here.

How much holding power does a Tapcon anchor provide?

Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

Can Tapcon anchors be used in coastal and other highly corrosive environments?

Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

Can Tapcon anchors replace other types of anchors?

Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

What is the Tapcon thread design?

The patented Advanced Threadform Technology Hi-Lo twin-thread design literally taps threads into concrete, creating a mechanical linking that is reversible and removable. The high threads feature notched edges that easily and quickly cut into masonry materials. The low threads provide positive stability when the anchor is being driven.

How do Tapcon anchors differ from other types of concrete anchors?

Expansion anchors, such as wedge and sleeve anchors provide holding power by expanding into the hole, which creates pressure on the hole walls. Tapcon anchors cut threads into the hole walls, eliminating pressure on the hole walls. This allows Tapcon anchors to be installed close to an edge and at reduced spacing.

In addition, unlike expansion anchors, Tapcon anchors are removable allowing for greater flexibility on the job.

Are inserts required for Tapcon anchors?

No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

What if I need to remove and/or move my application in the future?

Tapcon anchors are reversible, allowing future removal of any application.

What material is Genuine Blue Tapcon manufactured from?

Genuine Blue Tapcon is manufactured from heat-treated carbon steel for increased hardness and ductility.

What diameters are available for Genuine Blue Tapcon?

Original Genuine Tapcon comes in 3/16" and 1/4" diameters.

What is Climaseal coating?

It is a long-term corrosion resistant coating that covers the entire fastener surface.

Are Genuine Blue Tapcon anchors building code-approved?

Yes, Genuine Blue Tapcon anchors are building code-approved.

How deep do I drill the pilot hole?

The drilled hole for a 3/16", 1/4" and 5/16" anchors requires a 1/4" deeper hole, and the 3/8" and 1/2" anchors require a 1/2" deeper hole. This will ensure that any dust that settles in the hole will not interfere with the Tapcon threads.

What does ANSI stand for?

The American National Standards Institute is a private, non-profit organization that oversees product standards, including masonry drill bits.

Why do I need to clean the hole?

Cleaning the hole prevents any dust that settles into the hole from potentially interfering with the Tapcon threads.

Can I drill a pilot hole using a drill rotation-only movement?

Although you can drill through concrete with a carbide-tipped bit using a rotary drill only, it will take longer and significantly reduce the drill bit life. For optimal performance, it is highly recommended to drill through concrete with a rotary hammer or hammer drill in the hammer mode. It is also recommended that the drill flutes be cleared 2 or 3 times when drilling.
