White Ultrashield^™ Tapcon^®

The White Ultrashield Tapcon is ideal for applications that require discrete design and offers:

White finish that blends into light material and delivers long-lasting corrosion protection
Ultrashield finish delivers life-long corrosion resistance
Superior holding strength
The ability to withstand harsh conditions
Long-lasting performance
A reputation for quality, strength and ease of installation from industry professionals

Ask About This Product...

Where to Buy

SELECT YOUR HOME CENTER

Product Name	Part Number
White Ultrashield™ Tapcon® 1/4"x1-3/4", 8 pk	24142		-
Ultrashield White 3/16x2-3/4 PFH, 8 pk	24167	-	-
Ultrashield White 3/16x1-3/4 PFH, 8 pk	24171		-
Ultrashield White 3/16x2-1/4 PFH, 8 pk	24172	-	-
White Ultrashield™ Tapcon® 1/4"x2-3/4", 8 pk	24188		-
Ultrashield White 3/16x2-3/4 PFH, 25 pk	24267		-
White Ultrashield™ Tapcon® 1/4"x2-3/4", 25 pk	24288		-
White Ultrashield™ Tapcon® 1/4"x1-3/4", 75 pk	24342		-
White Ultrashield™ Tapcon® 1/4"x1-3/4", 75 pk	24342		-
Ultrashield White 3/16x2-3/4 PFH, 75 pk	24367		-
Ultrashield White 3/16x1-3/4 PFH, 75 pk	24371		-
Ultrashield White 3/16x2-1/4 PFH, 75 pk	24372		-
White Ultrashield™ Tapcon® 1/4"x2-3/4", 75 pk	24388
White Ultrashield™ Tapcon® 1/4"x2-3/4", 75 pk	24388
White Ultrashield™ Tapcon® 1/4"x3-1/4", 75 pk	24391
White Ultrashield™ Tapcon® 1/4"x3-1/4", 75 pk	24391
White Ultrashield™ Tapcon® 1/4"x3-3/4", 75 pk	24392		-
White Ultrashield™ Tapcon® 3/16"x1-3/4", 8 pk	28171		-
Storm Guard Ultrashield White 1/4x2-1/4 PFH, 100 pk	35235	-	-

What does "Tapcon" mean?

The Tapcon name is derived from its ability to "tap" threads into "con"crete.

What are Tapcon screw anchors?

Tapcon anchors are masonry screws designed with Advanced Threadform Technology^™, which cuts threads into all masonry materials including concrete, block and brick.

What diameters are available for White Ultrashield Tapcon?

White Ultrashield Tapcon comes in 3/16" and 1/4" diameters.

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here.

How much holding power does a Tapcon anchor provide?

Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

What is Ultrashield coating?

It is a high protection, long-term corrosion resistant coating that covers the entire fastener surface.

Can Tapcon anchors be used in coastal and other highly corrosive environments?

Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

Can Tapcon anchors replace other types of anchors?

Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

What is the Tapcon thread design?

The patented Advanced Threadform Technology Hi-Lo twin-thread design literally taps threads into concrete, creating a mechanical linking that is reversible and removable. The high threads feature notched edges that easily and quickly cut into masonry materials. The low threads provide positive stability when the anchor is being driven.

How do Tapcon anchors differ from other types of concrete anchors?

Expansion anchors, such as wedge and sleeve anchors provide holding power by expanding into the hole, which creates pressure on the hole walls. Tapcon anchors cut threads into the hole walls, eliminating pressure on the hole walls. This allows Tapcon anchors to be installed close to an edge and at reduced spacing.

In addition, unlike expansion anchors, Tapcon anchors are removable allowing for greater flexibility on the job.

Are inserts required for Tapcon anchors?

No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

What if I need to remove and/or move my application in the future?

Tapcon anchors are reversible, allowing future removal of any application.

What material is White Ultrashield Tapcon manufactured from?

White Ultrashield Tapcon is manufactured from heat-treated carbon steal for increased hardness and ductility.

Are White Ultrashield Tapcon anchors building code-approved?

Yes, White Ultrashield Tapcon anchors are building code-approved.

Where are White Ultrashield Tapcon anchors manufactured?

All genuine Tapcon anchors are engineered and manufactured in the United States.

STAR HEAD APPLICATION VIDEO

Product Information
Related Products
FAQ'S

Product Information

White Ultrashield Tapcon Applications

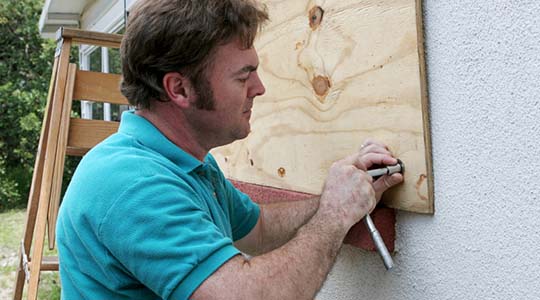

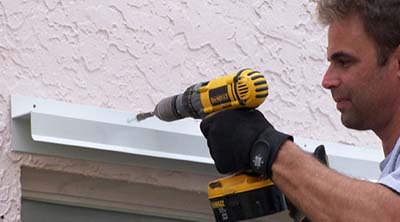

SHUTTERS

SHUTTERS

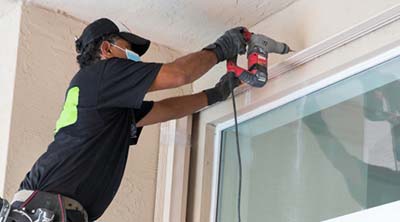

Door & Window Frame

Door & Window Frame

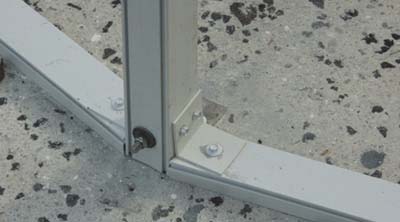

Screened enclosures

Screened enclosures

HEAD TYPE	PART NO.	ANCHOR DIAMETER	LENGTH	QTY.
Phillips	24188	1/4”	2-3/4”	8
Phillips	24288	1/4”	2-3/4”	25
Phillips	24388	1/4”	2-3/4”	75
Phillips	24391	1/4”	3-1/4”	75
Phillips	24392	1/4”	3-3/4”	75
Star	28171	3/16”	1-3/4”	8
Star	28371	3/16”	1-3/4”	75
Star	28172	3/16”	2-1/4”	8
Star	28371	3/16”	2-1/4”	75
Star	28167	3/16”	2-3/4”	8
Star	28267	3/16”	2-3/4”	25
Star	28367	3/16”	2-3/4”	75
Hex	24141	1/4”	1-1/4”	8
Hex	24341	1/4”	1-1/4”	75
Hex	24142	1/4”	1-3/4”	8
Hex	24342	1/4”	1-3/4”	75
Hex	24323	1/4”	2-1/4”	50

WHITE ULTRASHIELD TAPCON DOCUMENTATION

PDF of How to Install

Technical Data PDF

ENGINEERING

ESR-1671 Code Approval

ESR-2202 Code Approval

HOW TO INSTALL TAPCON ANCHORS

Aggregate Classification Map of The United States

Related Products

FAQ’s

What does "Tapcon" mean?

The Tapcon name is derived from its ability to "tap" threads into "con"crete.

What are Tapcon screw anchors?

Tapcon anchors are masonry screws designed with Advanced Threadform Technology^™, which cuts threads into all masonry materials including concrete, block and brick.

What diameters are available for White Ultrashield Tapcon?

White Ultrashield Tapcon comes in 3/16" and 1/4" diameters.

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here.

How much holding power does a Tapcon anchor provide?

Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

What is Ultrashield coating?

It is a high protection, long-term corrosion resistant coating that covers the entire fastener surface.

Can Tapcon anchors be used in coastal and other highly corrosive environments?

Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

Can Tapcon anchors replace other types of anchors?

Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

What is the Tapcon thread design?

The patented Advanced Threadform Technology Hi-Lo twin-thread design literally taps threads into concrete, creating a mechanical linking that is reversible and removable. The high threads feature notched edges that easily and quickly cut into masonry materials. The low threads provide positive stability when the anchor is being driven.

How do Tapcon anchors differ from other types of concrete anchors?

Expansion anchors, such as wedge and sleeve anchors provide holding power by expanding into the hole, which creates pressure on the hole walls. Tapcon anchors cut threads into the hole walls, eliminating pressure on the hole walls. This allows Tapcon anchors to be installed close to an edge and at reduced spacing.

In addition, unlike expansion anchors, Tapcon anchors are removable allowing for greater flexibility on the job.

Are inserts required for Tapcon anchors?

No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

What if I need to remove and/or move my application in the future?

Tapcon anchors are reversible, allowing future removal of any application.

What material is White Ultrashield Tapcon manufactured from?

White Ultrashield Tapcon is manufactured from heat-treated carbon steal for increased hardness and ductility.

Are White Ultrashield Tapcon anchors building code-approved?

Yes, White Ultrashield Tapcon anchors are building code-approved.

Where are White Ultrashield Tapcon anchors manufactured?

All genuine Tapcon anchors are engineered and manufactured in the United States.
