Product Information






How to Use

Step 1

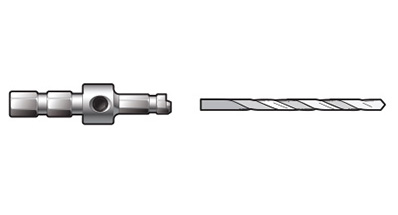

Place correct Tapcon drill bit in drill adapter and tighten set screw with hex key (included). For rotary hammer begin at Step 3.

Step 2

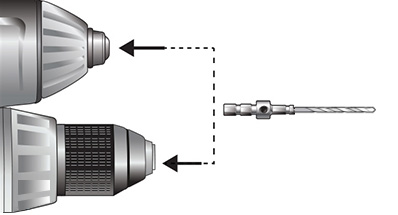

Secure drill adapter into 3/8" - 1/2" chuck of hammer drill or into 1/4" impact hammer.

Step 3

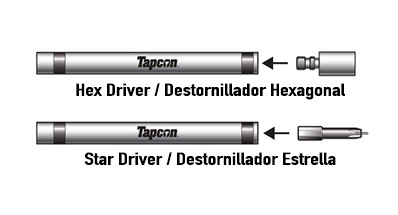

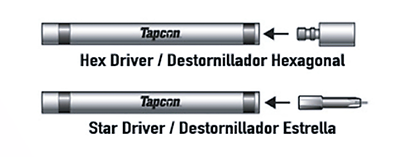

Attach appropriate hex driver or Phillips bit to end of sleeve.





Drill

Step 4

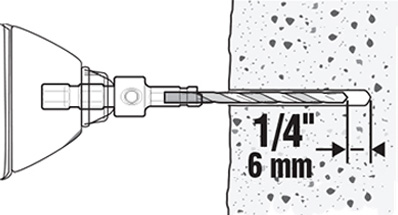

Drill hole 1/4" deeper than depth of anchor embedment. (Min. embedment 1"). Remove dust from hole.



Slide

Step 5

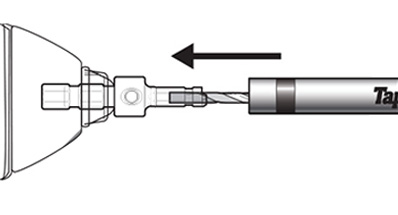

Slide sleeve over drill bit and snap into drill adapter.



Drive

Step 6

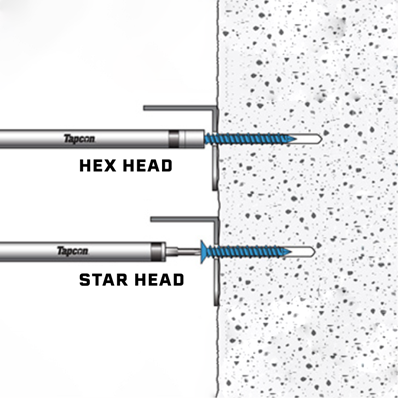

Insert anchor into the end of the sleeve, position fixture to be fastened and drive the Tapcon.

Product Documentation

Related Products

FAQ’s

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here

How deep do I drill the pilot hole?

The drilled hole for a 3/16", 1/4" and 5/16" anchors requires a 1/4" deeper hole, and the 3/8" and 1/2" anchors require a 1/2" deeper hole. This will ensure that any dust that settles in the hole will not interfere with the Tapcon threads.

Can I use standard ANSI drill bits to secure Tapcon drill bits?

3/8" and 1/2" Tapcon anchors can use standard ANSI drill bits. 3/16", 1/4" and 5/16" Tapcon anchors require specially engineered Tapcon drill bits, which are designed with tighter tolerances than standard ANSI drill bits for maximum holding power.

Why do I need to clean the hole?

Cleaning the hole prevents any dust that settles into the hole from potentially interfering with the Tapcon threads.

Can I drill a pilot hole using a drill rotation-only movement?

Although you can drill through concrete with a carbide-tipped bit using a rotary drill only, it will take longer and significantly reduce the drill bit life. For optimal performance, it is highly recommended to drill through concrete with a rotary hammer or hammer drill in the hammer mode. It is also recommended that the drill flutes be cleared 2 or 3 times when drilling.

What does The Tapcon Pro Installation Kit include?

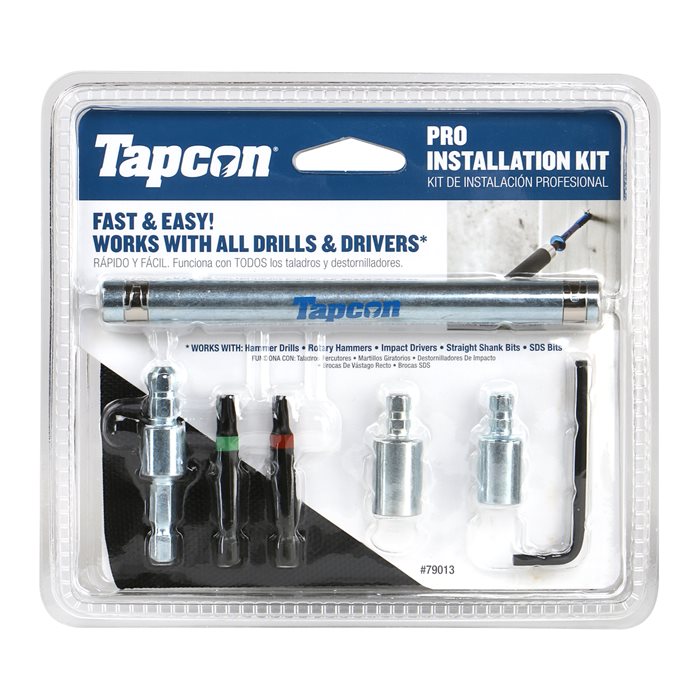

The Tapcon Pro Installation Kit includes:

  • The Tapcon Drill Bit Adapter
  • 1/8" Hex Key
  • Drive Sleeve
  • #2 and #3 PH Bits
  • 1/4" and 5/16" Recessed Hex Drivers
  • Carry Pouch
