Heavy-Duty Tapcon^®+

Ideal for projects that require heavy-duty holding power, Tapcon+ all-in-one substrate screw anchors offer:

More than 2x faster installation than wedge or sleeve anchors
The ability to drive close to the edge with confidence
Corrosion-resistance and long-lasting performance due to the innovative Climaseal^®blue coating
20% more holding power than wedge or sleeve anchors

Where to Buy Request a Sample

Product Information
Related Products
FAQ'S

Product Information

Heavy-Duty Tapcon+ Applications

Products — MACHINERY / HEAVY EQUIPMENT

MACHINERY / HEAVY EQUIPMENT

INDUSTRIAL SHELVING

INDUSTRIAL SHELVING

Heavy-Duty Tapcon+ Documentation

PDF of How to Install

Technical Data PDF

Engineering

Approvals/Reports

HOW TO INSTALL TAPCON ANCHORS

AGGREGATE CLASSIFICATION MAP OF THE UNITED STATES

FAQ’s

Where are Tapcon anchors manufactured?

All genuine Tapcon anchors are engineered and manufactured in the United States.

What does "Tapcon" mean?

The Tapcon name is derived from its ability to "tap" threads into "con"crete.

What are Tapcon screw anchors?

Tapcon anchors are masonry screws designed with Advanced Threadform Technology^™, which cuts threads into all masonry materials including concrete, block and brick.

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here.

How much holding power does a Tapcon anchor provide?

Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

Can Tapcon anchors be used in coastal and other highly corrosive environments?

Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

Can Tapcon anchors replace other types of anchors?

Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

What is the Tapcon thread design?

The patented Advanced Threadform Technology Hi-Lo twin-thread design literally taps threads into concrete, creating a mechanical linking that is reversible and removable. The high threads feature notched edges that easily and quickly cut into masonry materials. The low threads provide positive stability when the anchor is being driven.

How do Tapcon anchors differ from other types of concrete anchors?

Expansion anchors, such as wedge and sleeve anchors provide holding power by expanding into the hole, which creates pressure on the hole walls. Tapcon anchors cut threads into the hole walls, eliminating pressure on the hole walls. This allows Tapcon anchors to be installed close to an edge and at reduced spacing.

In addition, unlike expansion anchors, Tapcon anchors are removable allowing for greater flexibility on the job.

Are inserts required for Tapcon anchors?

No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

Heavy-Duty Tapcon^®+

Product Information

Heavy-Duty Tapcon+ Applications

MACHINERY / HEAVY EQUIPMENT

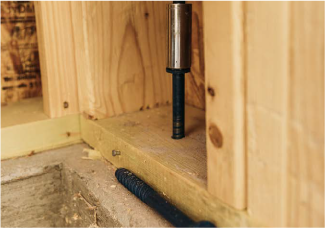

LEDGER BOARD

INDUSTRIAL SHELVING

Heavy-Duty Tapcon+ Documentation

Engineering

Approvals/Reports

AGGREGATE CLASSIFICATION MAP OF THE UNITED STATES

Related Products

FAQ’s

Where are Tapcon anchors manufactured?

All genuine Tapcon anchors are engineered and manufactured in the United States.

What does "Tapcon" mean?

The Tapcon name is derived from its ability to "tap" threads into "con"crete.

What are Tapcon screw anchors?

Tapcon anchors are masonry screws designed with Advanced Threadform Technology^™, which cuts threads into all masonry materials including concrete, block and brick.

How do I install a Tapcon anchor?

How much holding power does a Tapcon anchor provide?

Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

Can Tapcon anchors be used in coastal and other highly corrosive environments?

Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

Can Tapcon anchors replace other types of anchors?

Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

What is the Tapcon thread design?

How do Tapcon anchors differ from other types of concrete anchors?

Are inserts required for Tapcon anchors?

No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

What if I need to remove and/or move my application in the future?

Tapcon anchors are reversible, allowing future removal of any application.

What material is Genuine Blue Tapcon manufactured from?

Genuine Blue Tapcon is manufactured from heat-treated carbon steel for increased hardness and ductility.

What diameters are available for Genuine Blue Tapcon?

Original Genuine Tapcon comes in 3/16" and 1/4" diameters.

What is Climaseal coating?

It is a long-term corrosion resistant coating that covers the entire fastener surface.

Are Genuine Blue Tapcon anchors building code-approved?

Yes, Genuine Blue Tapcon anchors are building code-approved.
