Products   Genuine Tapcon Screw Anchors   Maxi-Set Tapcon®

Maxi-Set Tapcon®

The large diameter flange on Maxi-Set Tapcon screws provides more surface area coverage for reduced cracking and maximum security.

  • Silver finish blends in with multiple surfaces and aesthetics
  • Ultrashield™finish delivers life-long corrosion resistance
  • 5/8” diameter flange provides more surface area coverage, increasing pullover resistance and reducing cracking during installation
  • Superior holding strength
  • The ability to withstand harsh conditions
  • Long-lasting performance
  • A reputation for quality, strength and ease of installation from industry professionals

Where to Buy

    • What does "Tapcon" mean?

    The Tapcon name is derived from its ability to "tap" threads into "con"crete.

    What are Tapcon screw anchors?

    Tapcon anchors are masonry screws designed with Advanced Threadform Technology ™, which cuts threads into all masonry materials including concrete, block and brick.

    What material are Maxi-Set Tapcons manufactured from?

    Maxi-Set Tapcons are manufactured from heat-treated carbon steal for increased hardness and ductility.

    How do I install a Tapcon anchor?

    First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here.

    How much holding power does a Tapcon anchor provide?

    Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

    What is Ultrashield coating?

    It is a high protection, long-term corrosion resistant coating that covers the entire fastener surface.

    Can Tapcon anchors be used in coastal and other highly corrosive environments?

    Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

    Can Tapcon anchors replace other types of anchors?

    Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

    What is the Tapcon thread design?

    The patented Advanced Threadform Technology Hi-Lo twin-thread design literally taps threads into concrete, creating a mechanical linking that is reversible and removable. The high threads feature notched edges that easily and quickly cut into masonry materials. The low threads provide positive stability when the anchor is being driven.

    Are Maxi-Set Tapcon anchors building code-approved?

    Yes, Maxi-Set Tapcon anchors are building code-approved.

    How do Tapcon anchors differ from other types of concrete anchors?

    Expansion anchors, such as wedge and sleeve anchors provide holding power by expanding into the hole, which creates pressure on the hole walls. Tapcon anchors cut threads into the hole walls, eliminating pressure on the hole walls. This allows Tapcon anchors to be installed close to an edge and at reduced spacing.

    In addition, unlike expansion anchors, Tapcon anchors are removable allowing for greater flexibility on the job.

    Are inserts required for Tapcon anchors?

    No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

    What if I need to remove and/or move my application in the future?

    Tapcon anchors are reversible, allowing future removal of any application.

    Where are Maxi-Set Tapcon anchors manufactured?

    All genuine Tapcon anchors are engineered and manufactured in the United States.

    What diameters are available for Maxi-Set Tapcon?

    Maxi-Set Tapcons come in 1/4" diameters.

    STAR HEAD APPLICATION VIDEO
  • Product Information
  • Related Products
  • FAQ'S

Product Information

Maxi-Set Tapcon Applications

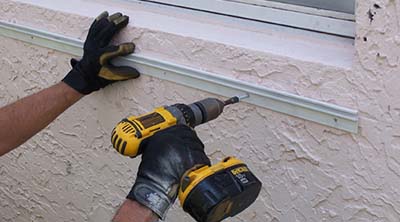

Shutters

Shutters

SCREENED PORCH

SCREENED PORCH

Pool Enclosures

Pool Enclosures

Other Applications

Sheet metal flashings, decorative wrought iron, wood nailers and plywood attachment, and hurricane protective boards.

FAMILY HEAD TYPE ANCHOR DIAMETER LENGTH AVAILABLE PACK SIZES
Silver Ultrashield Hex Flange 1/4” 2-1/4” 50
White Ultrashield Hex Flange 1/4” 2-1/4” 50

MAXI-SET TAPCON DOCUMENTATION

PDF of How to Install

Technical Data PDF
HOW TO INSTALL TAPCON ANCHORS


Aggregate Classification Map of The United States

Related Products

Drill Bits

View Product

GENUINE TAPCON®

View Product

White Ultrashield™ Tapcon®

View Product

FAQ’s

What does "Tapcon" mean?

The Tapcon name is derived from its ability to "tap" threads into "con"crete.

What are Tapcon screw anchors?

Tapcon anchors are masonry screws designed with Advanced Threadform Technology ™, which cuts threads into all masonry materials including concrete, block and brick.

What material are Maxi-Set Tapcons manufactured from?

Maxi-Set Tapcons are manufactured from heat-treated carbon steal for increased hardness and ductility.

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here.

How much holding power does a Tapcon anchor provide?

Tapcon anchor performance depends on the diameter of the screw, embedment depth and compressive strength of the concrete. Click here for specific performance data.

What is Ultrashield coating?

It is a high protection, long-term corrosion resistant coating that covers the entire fastener surface.

Can Tapcon anchors be used in coastal and other highly corrosive environments?

Yes, 410 Stainless Steel, White Ultrashield, coated Tapcons including Phillips, Hex, and Maxi-set headed anchors provide the highest degree of protection in highly corrosive environments.

Can Tapcon anchors replace other types of anchors?

Yes, Tapcon anchors can be used in place of traditional mechanical expansion anchors such as wedge anchors, sleeve anchors and plugs.

What is the Tapcon thread design?

The patented Advanced Threadform Technology Hi-Lo twin-thread design literally taps threads into concrete, creating a mechanical linking that is reversible and removable. The high threads feature notched edges that easily and quickly cut into masonry materials. The low threads provide positive stability when the anchor is being driven.

Are Maxi-Set Tapcon anchors building code-approved?

Yes, Maxi-Set Tapcon anchors are building code-approved.

How do Tapcon anchors differ from other types of concrete anchors?

Expansion anchors, such as wedge and sleeve anchors provide holding power by expanding into the hole, which creates pressure on the hole walls. Tapcon anchors cut threads into the hole walls, eliminating pressure on the hole walls. This allows Tapcon anchors to be installed close to an edge and at reduced spacing.

In addition, unlike expansion anchors, Tapcon anchors are removable allowing for greater flexibility on the job.

Are inserts required for Tapcon anchors?

No, while some masonry anchors use a lag shield, which are hammered into a hole, then threaded in, which can cause expansion pressure in the hole, Tapcon anchors cut threads into a hole, causing no expansion pressure in the hole.

What if I need to remove and/or move my application in the future?

Tapcon anchors are reversible, allowing future removal of any application.

Where are Maxi-Set Tapcon anchors manufactured?

All genuine Tapcon anchors are engineered and manufactured in the United States.

What diameters are available for Maxi-Set Tapcon?

Maxi-Set Tapcons come in 1/4" diameters.
