Product Information






How to Use

Step 1

Place correct Tapcon drill bit in drill adapter and tighten set screw with hex key (included). For rotary hammer begin at Step 3.

Step 2

Secure drill adapter into 3/8" - 1/2" chuck of hammer drill or into 1/4" impact hammer.

Step 3

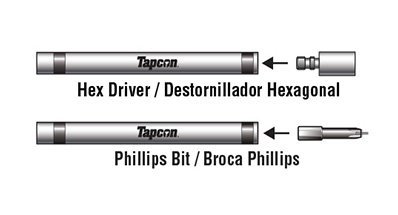

Attach appropriate hex driver or Phillips bit to end of sleeve.





Drill

Step 4

Drill hole 1/4" deeper than depth of anchor embedment. (Min. embedment 1"). Remove dust from hole.



Slide

Step 5

Slide sleeve over drill bit and snap into drill adapter.



Drive

Step 6

Insert anchor into the end of the sleeve, position fixture to be fastened and drive the Tapcon.

Product Documentation

Related Products

FAQ’s

Do I need to use The Tapcon Pro Installation Kit to install Tapcon anchors?

No, you do not. Although The Tapcon Pro Installation Kit will greatly save installation time and labor hours. Tapcon anchors can also be installed with a Phillips bit or hex nut driver.

How do I install a Tapcon anchor?

First, drill a hole using a hammer-drill or rotary hammer in the hammer mode. Second, switch your drill out of hammer mode and position the Tapcon anchor into a nut driver or onto a Phillips bit. Then drive the anchor into the pre-drilled hole until it is fully seated. For more information, click here

What does The Tapcon Pro Installation Kit include?

The Tapcon Pro Installation Kit includes:

  • The Tapcon Drill Bit Adapter
  • 1/8" Hex Key
  • Drive Sleeve
  • #2 and #3 PH Bits
  • 1/4" and 5/16" Recessed Hex Drivers
  • Carry Pouch

What tools does The Tapcon Pro Installation Kit work with?

The Tapcon Pro Installation Kit works with:

  • Hammer Drills
  • Rotary Hammers
  • Impact Drivers
  • Straight Shank Bits
  • SDS Bits
